Introduction
This and the next stage wrap up some miscellaneous enabling functionality to handle switching between RX and TX.
The circuitry for connecting the PTT and Keyer inputs up to Rocky via a serial interface is installed in this stage (minus the DB9 connector, which will be installed in the "External Connections" stage.
The PTT (PTT_I tab on the board) can be activated with +12V from the RS232C signal of the Rocky Interface, OR with +5V from other sources (e.g. a +5V uC signal). If you are using Rocky, you may not need to connect the GND as the GND return may flow through the audio connectors already.
Also available from Tony Parks is a USB I2C interface. That interface's PTT_OUT (Rx = 0V, Tx = 5V) can be connected to the SRv6.x's PTT_IN.

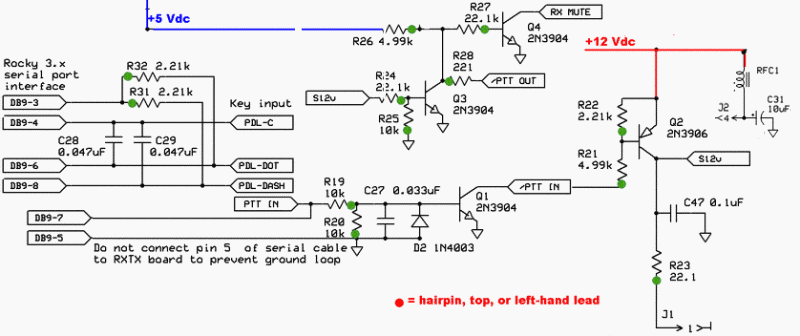

Schematic
(Click for full TX Schematic)
Summary Build Notes
- Install Ceramic Caps C27-C29
- Install Elactrolytic cap C31
- Install Resistors R19-R28, R31-R32
- Install D2, Q1-Q4
- Wind and install RFC1
- Test the Stage
Bill of Materials
| Check | Designation | Component | (Color) Code | Type | Qty | Notes |
|---|---|---|---|---|---|---|
| [__] | C27 | 0.033 uF | 333 | ceramic | 1 | |
| [__] | C28 | 0.047 uF | 473 | ceramic | 1 | |
| [__] | C29 | 0.047 uF | 473 | ceramic | 1 | |
| [__] | C31 | 10 uF 16V | electrolytic | 1 | S=+ | |
| [__] | RFC1 | 23 uH | choke 4T #26 | 1 | BN-43-2402 5" | |
| [__] | R19 | 10 k | brown-black-black-red-brown | Resistor 1% | 1 | E-W |
| [__] | R20 | 10 k | brown-black-black-red-brown | Resistor 1% | 1 | W-E |
| [__] | R21 | 4.99 k | yellow-white-white-brown-brown | Resistor 1% | 1 | N-S |
| [__] | R22 | 2.21 k | red-red-brown-brown-brown | Resistor 1% | 1 | N-S |
| [__] | R23 | 22.1 | red-red-brown-gold-brown | Resistor 1% | 1 | FlatH |
| [__] | R24 | 22.1 k | red-red-brown-red-brown | Resistor 1% | 1 | N-S |
| [__] | R25 | 10 k | brown-black-black-red-brown | Resistor 1% | 1 | N-S |
| [__] | R26 | 4.99 k | yellow-white-white-brown-brown | Resistor 1% | 1 | N-S |
| [__] | R27 | 22.1 k | red-red-brown-red-brown | Resistor 1% | 1 | E-W |
| [__] | R28 | 221 | red-red-brown-black-brown | Resistor 1% | 1 | E-W |
| [__] | R31 | 2.21 k | red-red-brown-brown-brown | Resistor 1% | 1 | W-E |
| [__] | R32 | 2.21 k | red-red-brown-brown-brown | Resistor 1% | 1 | W-E |
| [__] | D2 | 1N4003 | Diode | 1 | ||
| [__] | Q1 | 2N3904 | Transistor (NPN) TO-92 | 1 | ||
| [__] | Q2 | 2N3906 | Transistor (PNP) TO-92 | 1 | ||
| [__] | Q3 | 2N3904 | Transistor (NPN) TO-92 | 1 | ||
| [__] | Q4 | 2N3904 | Transistor (NPN) TO-92 | 1 |
Detailed Build Notes

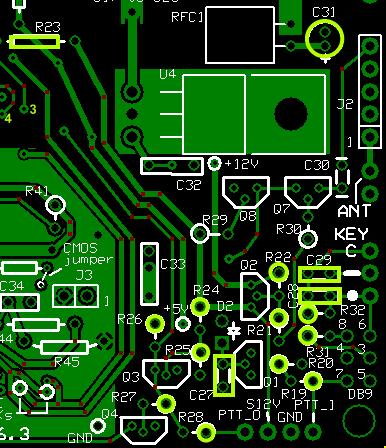

Install the Capacitors and Resistors
| Check | Designation | Component | (Color) Code | Type | Qty | Notes |
|---|---|---|---|---|---|---|
| [__] | C27 | 0.033 uF | 333 | ceramic | 1 | |
| [__] | C28 | 0.047 uF | 473 | ceramic | 1 | |
| [__] | C29 | 0.047 uF | 473 | ceramic | 1 | |
| [__] | C31 | 10 uF 16V | electrolytic | 1 | S=+ | |
| [__] | R23 | 22.1 | red-red-brown-gold-brown | Resistor 1% | 1 | FlatH |
| [__] | R28 | 221 | red-red-brown-black-brown | Resistor 1% | 1 | E-W |
| [__] | R22 | 2.21 k | red-red-brown-brown-brown | Resistor 1% | 1 | N-S |
| [__] | R31 | 2.21 k | red-red-brown-brown-brown | Resistor 1% | 1 | W-E |
| [__] | R32 | 2.21 k | red-red-brown-brown-brown | Resistor 1% | 1 | W-E |
| [__] | R21 | 4.99 k | yellow-white-white-brown-brown | Resistor 1% | 1 | N-S |
| [__] | R26 | 4.99 k | yellow-white-white-brown-brown | Resistor 1% | 1 | N-S |
| [__] | R19 | 10 k | brown-black-black-red-brown | Resistor 1% | 1 | E-W |
| [__] | R20 | 10 k | brown-black-black-red-brown | Resistor 1% | 1 | W-E |
| [__] | R25 | 10 k | brown-black-black-red-brown | Resistor 1% | 1 | N-S |
| [__] | R24 | 22.1 k | red-red-brown-red-brown | Resistor 1% | 1 | N-S |
| [__] | R27 | 22.1 k | red-red-brown-red-brown | Resistor 1% | 1 | E-W |

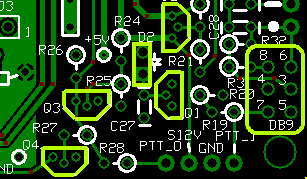

Install Semiconductors
- When mounting D2, mount it hairpin style so the lead going to the square pad is the cathode
(the end with the line)
- Be sure to distinguish between the 2N3904 and the 2N3906 (the markings look very similar).
| Check | Designation | Component | (Color) Code | Type | Qty | Notes |
|---|---|---|---|---|---|---|
| [__] | D2 | 1N4003 | Diode | 1 | N-S | |
| [__] | Q1 | 2N3904 | Transistor (NPN) TO-92 | 1 | ||
| [__] | Q2 | 2N3906 | Transistor (PNP) TO-92 | 1 | ||
| [__] | Q3 | 2N3904 | Transistor (NPN) TO-92 | 1 | ||
| [__] | Q4 | 2N3904 | Transistor (NPN) TO-92 | 1 |
Wind and Install the RFC Choke
- RFC1 needs 4 turns (5") of #26 wire.
- Before winding, take a small drill bit and twirl it in the core holes to smooth/remove any burrs that might otherwise short the coil.
- Remember, when winding a binocular core like the BN-43-2402, each pass where the wire ends up at the same side where it started the pass counts as a turn.
- Use fine grit emery cloth to remove the enamel from the magnet wire up to within 1/8 inch of the core
- Mount the choke so that it lays horizontally flat in the designated space.
| Check | Designation | Component | (Color) Code | Type | Qty | Notes |
|---|---|---|---|---|---|---|
| [__] | RFC1 | 23 uH | choke 4T #26 | 1 | BN-43-2402 5" |
WC5MC TX LED Modification
Charles, WC5MC has a nifty little mod (see his documentation) which adds an LED indicator that lights up when power is applied to the PA/Filter (i.e., the rig's PTT-I goes high and enables the TX mode). It involved dead-bugging a 20 k resistor and an LED between the S12V line and circuit ground.

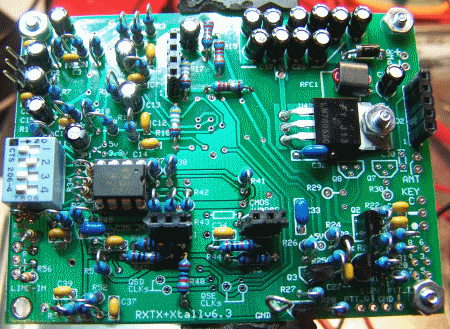

Completed Board
Testing
Current Limited Power Test
- Connect a 100 ohm resistor in series with the power line and apply 12 V dc power
- the current should be less than 120 mA
- Measure the voltage WRT ground at the +5 V and at the 3.3 Vdc testpoints.
- A voltage of around 2 V dc indicates the power rails are not shorted
- Remove the current-limiting resistor. Subsequent tests in this stage are with the current-limiting resistor OUT of the circuit.
Current Draw
- Without current limiting resistor you should see < 103 mA
- Your Measurement: _______________________________
Switching
Following provided by Bob G8VOI:
RX State
Normally with no connection to PTT_IN, Q1 is turned off, so the collector and R21 (/PTT_IN) should be at a high level, approaching the +12V supply. In that state Q2 is turned off and S12V is low (close to 0V). In other words, in the RX state.
TX State
When you apply 12V to PTT_IN, Q1 turns on, pulls R21 and /PTT_IN to a low level, Q2 turns on and S12V goes to approximately the supply (Vcc minus ~0.6V, drop across Q2 emitter / collector), i.e., TX state.

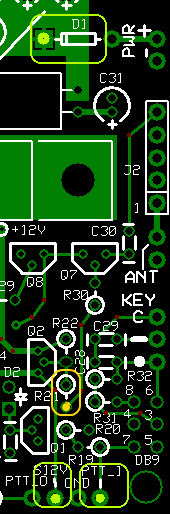

Test Setup and Procedure
- Before powering up, attach a clip lead between the left-hand (cathode) lead of
D1 and the "PTT-I"
(this sets PTT_IN = 12 Vdc, ON)
Be careful. Do not apply 12Vdc to the terminal marked "PTT-O" - it causes chips to fry!
- Apply power
- Measure the voltage at the S12V pad. You should get a high signal (e.g., 10-12 Vdc). Your measurement: _________________________
- Measure the voltage at R21 hairpin (/PTT-I). This should get a
low signal, ~0 Vdc.
Your Measurement: _____________________ - Unclip the lead at the D1 cathode (this sets PTT OFF)
- Measure the voltage at the S12V pad again. You should get a
low signal, ~0 Vdc.
Your Measurement: _____________________ - Measure the voltage at R21 hairpin (/PTT-I). This should get a
high signal, well above 0 Vdc (e.g., 10-12 Vdc).
Your Measurement: _____________________
If the preceding tests do not yield the expected results, remove the 12V connection to PTT-IN and check the voltage at R21 (/PTT-IN). It is very likely 0 volts (when it should be close to 12V). If that is the case, there could be one of more causes:
- R21 or R22 is open circuit and not pulling that point up to 12V.
- Q1 is short circuited between the collector and emitter. This would give the same result, however, in that case, with Q2 base being pulled low, Q2 would be turned on and S12V would be at a high level (which is not happening in this case).
- Another likely possibility is that you might have Q1 and Q2 transistor types swapped over. This would not be the first time a builder, in the heat of battle, inadvertently installed a 2N3904 for a 2N3906 or vice versa. If you had the PNP (2N3906) fitted in Q1 position it would be turned on as the base would be pulled low via R20. That would give a low on R21, however with a NPN (2N3904) transistor fitted in Q2 position, it would be turned off, hence 0V on S12V.
- Another less-likely possibility is the correct transistors were installed, but installed backwards (check the alignment with the silkscreen).
- The collector of Q1 also goes to R30 so faults in, or around Q7 and Q8 can cause the voltage at "/PTT IN" to be dragged down causing Q2 to be switched on permanently. If the voltage at "/PTT IN" is not at 12V or 0V and you are certain Q1, Q2 and the components around them are correct it could be an idea to lift one end of R30 to see if that makes it rise to 12V. If this does not make any difference you may leave this off until correct operation is obtained.
RFC1 Continuity Test
- Apply power to the board
- Measure the voltage wrt ground at Pin 4 of J2 (this is the lower end of the RF Choke
- You should get the value that is on the 12 Vdc rail (author's rail = ~11.07 Vdc).
Your Measurement: _____________________ - If you do not get the expected value, this may be an indication that the RFC's leads were not properly soldered.
